Long-term monitoring, processes with little change Water and wastewater treatment
Characteristic

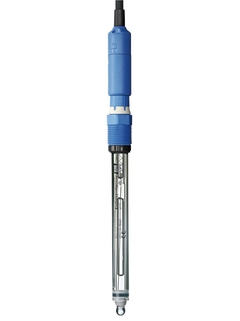

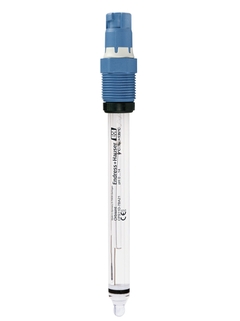

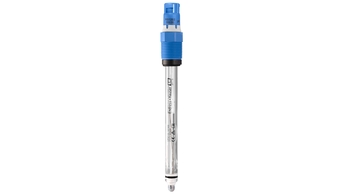

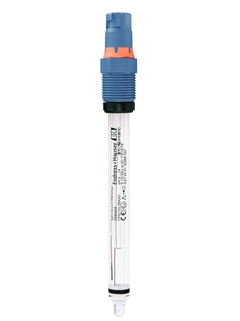

Analog, digital pH electrodes for standard applications in process and environmental technology Dirt-repellent PTFE diaphragm, built-in temperature sensor
Measuring range
pH 0 to 14
Measuring principle
Gel compact electrode with PTFE ring-diaphragm
Design
All shaft lengths with temperature sensor Advanced gel technology Digital electrode with Memosens technology
Material
Glass and PTFE
Dimension
Diameter: 12 mm (0.47 inch) Shaft length: 120, 225 and 360 mm (4.72, 8.86 and 14.17 inch)
Process temperature
0 to 135 °C (32 to 275 °F)
Process pressure
1 to 17 bar (15 to 246 psi)
Temperature sensor
NTC 30k
Ex certification
ATEX, FM, CSA, NEPSI
Connection
Inductive, digital connection head with Memosens technology
Memosens pH/ORP
Sicherheitshinweise für elektrische Betriebsmittel im
explosionsgefährdeten Bereich
Safety instructions for electrical apparatus for explosion-hazardous
areas
Conseils de sécurité pour matériels électriques destinés aux zones
explosibles
Safety Instructions
Instruções de Segurança Ex (XA)
Versão em inglês - 11/2016
New version available in English
Safety instructions for electrical apparatus for explosion-hazardous areas
Memosens pH/ORP
Sicherheitshinweise für elektrische Betriebsmittel im
explosionsgefährdeten Bereich
Safety instructions for electrical apparatus for explosion-hazardous
areas
Conseils de sécurité pour matériels électriques destinés aux zones
explosibles
Safety Instructions
Instruções de Segurança Ex (XA)
Versão em inglês - 02/2016
New version available in English
Safety instructions for electrical apparatus for explosion-hazardous areas
pH and ORP measurement Supplement to: BA01572C, BA01109C Safety instructions for electrical equipment in explosion-hazardous areas EAC Ex 0Ex ia IIC T3/T4/T6 Ga X EAC Ex 0Ex ia IIC T4/T6 Ga X
pH/ORP measurement Supplement to BA01572C, BA01109C Safety instructions for electrical apparatus in explosion-hazardous areas UKEx II 1 G Ex ia IIC T3/T4/T6 Ga UK Ex II 1 G Ex ia IIC T4/T6 Ga
